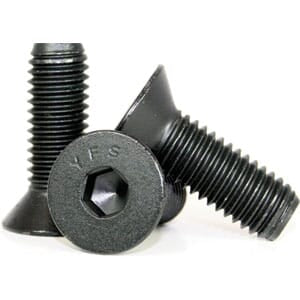

M24-3.00 x 55mm Flat Head Cap Screws, Full Thread / Class 12.9 Steel / Thermal Black Oxide / Import / ISO 898-1 Class 12.9; DIN 7991
$1,615.92
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M24-3.00 x 55mm Flat Head Cap Screws, Full Thread / Class 12.9 Steel / Thermal Black Oxide / Import / ISO 898-1 Class 12.9; DIN 7991
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Thermal Black Oxide |
| Grade | Class 12.9 |
| Size | M24-3.00 |
| Length | 55mm |
| Head Style | Socket Head |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 3.0mm |
| Thread Class | Coarse |
| Hardness | C39 - C44 |
| Tensile Strength | 174000 |
| Standard | DIN 7991 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
.50 x 18mm Flat Head Socket Cap Screw, Full Thread (DIN 7991) / Class 12.9 Alloy Steel / Black Oxide
Family: 534
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M24-3.00
Thread Type
Metric Coarse
Material
Alloy Steel
Grade
Class 12.9
Head Style
Socket Head
Country of Origin
Import
Thread Pitch
3.0mm
Tensile Strength
174000
Hardness
C39 - C44
SKU
534410-80
