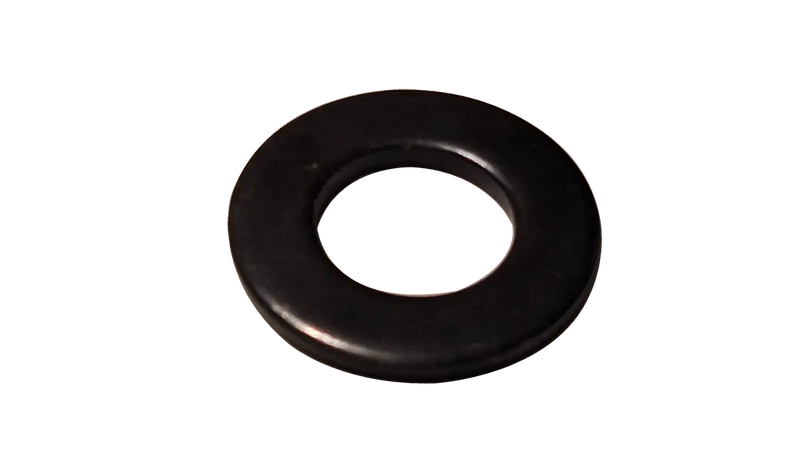

M12 Flat Washers / Steel / Black Oxide / DIN125A
$223.08
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M12 Flat Washers / Steel / Black Oxide / DIN125A
Specifications
| Material | Steel |
|---|---|
| Finish | Black Oxide |
| Size | M12 |
| Inside Diameter | 13 mm |
| Outside Diameter | 24mm |
| Thickness | 2.3mm - 2.7mm |
| Standard | DIN 125A |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
Flat Washers / Steel / Black Oxide
Family: D125AB
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M12
Material
Steel
Thread Direction
Unthreaded
Outer Diameter
24mm
Thickness
2.3mm - 2.7mm
SKU
M12D125AB-1500
