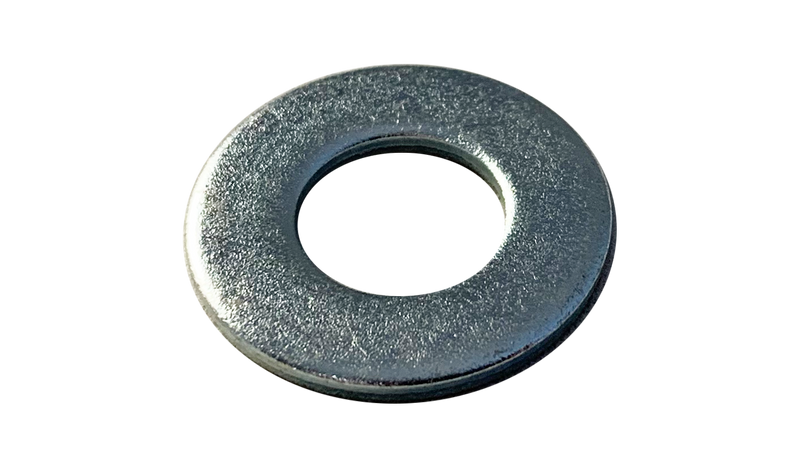

M10 Flat Washer, DIN 125A (200) / 20mm OD / 2.0mm Thick / Steel / Zinc Yellow / ASME B18.22.1
$200.62
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M10 Flat Washer, DIN 125A (200) / 20mm OD / 2.0mm Thick / Steel / Zinc Yellow / ASME B18.22.1
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc Yellow |
| Size | M10 |
| Inside Diameter | 10.5 mm |
| Outside Diameter | 20 mm |
| Thickness | 2 mm |
| Standard | ASME B18.22.1 |
| RoHS Compliance | Non-Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
What is the difference between USS and SAE flat washers?
USS (Type B) flat washers have larger outside diameters and are thicker than SAE (Type A) washers of the same bolt size. USS is designed for softer materials and larger load distribution. SAE is used for harder materials and standard fastener installation.
Flat Washer, DIN 125A (200) / 16mm OD / 1.6mm Thick
Family: 246
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M10
Material
Steel
Thread Direction
Unthreaded
Country of Origin
Import
Outer Diameter
20 mm
Thickness
2 mm
SKU
246106-5000
