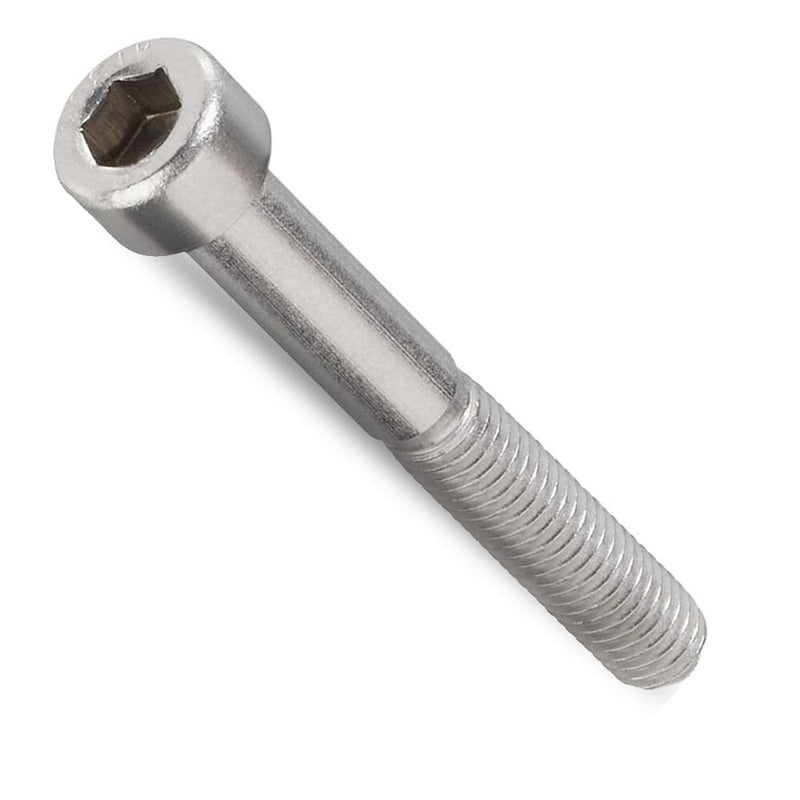

M10-1.50 x 75mm Socket Head Cap Screws, Partial Thread / Class 12.9 Steel / Zinc CR+6 / ISO 898-1 Class 12.9; ASME B18.3
$215.62
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M10-1.50 x 75mm Socket Head Cap Screws, Partial Thread / Class 12.9 Steel / Zinc CR+6 / ISO 898-1 Class 12.9; ASME B18.3
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Zinc |
| Grade | Class 12.9 |
| Size | M10-1.50 |
| Length | 75mm |
| Head Style | Socket Head |
| Drive | Hex Socket (Allen) |
| Thread Pitch | 1.50mm |
| Thread Class | Coarse |
| Hardness | C39 - C44 |
| Tensile Strength | 174000 |
| Standard | ASME B18.3 |
| RoHS Compliance | Non-Compliant |
| Measurement System | Metric |
| Head Height | 10 mm |
| Hex Key / Wrench Size | 8 mm |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
What hex key size do I need for this socket head cap screw?
For this M10-1.50 Socket Head Cap Screw, use a 8 mm hex key (Allen wrench).
.50 x 5mm Socket Head Cap Screw, Full Thread / Class 12.9 Alloy Steel / Zinc Bake
Family: 841
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M10-1.50
Thread Type
Metric Coarse
Material
Alloy Steel
Grade
Class 12.9
Head Style
Socket Head
Thread Pitch
1.50mm
Tensile Strength
174000
Hardness
C39 - C44
SKU
841170-100
