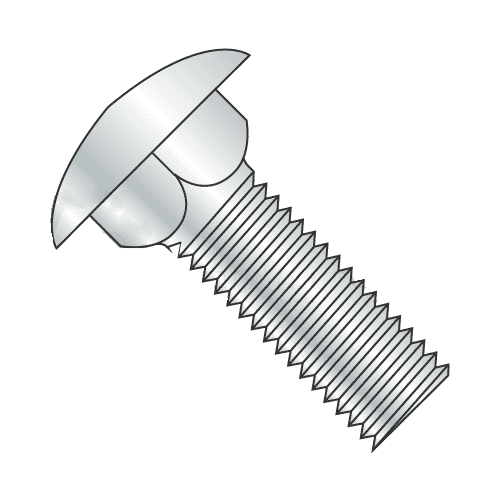

M10-1.50 x 35 MM Carriage Bolt, Full Thread / Class 4.6 Steel / Zinc / ISO 898-1 Class 4.6; DIN 603
$161.83
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M10-1.50 x 35 MM Carriage Bolt, Full Thread / Class 4.6 Steel / Zinc / ISO 898-1 Class 4.6; DIN 603
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Grade | Class 4.6 |
| Size | M10-1.50 |
| Length | 35mm |
| Head Style | Carriage (Round) |
| Thread Pitch | 1.5mm |
| Thread Class | Coarse |
| Hardness | B67 - B95 |
| Tensile Strength | 58000 |
| Standard | DIN 603 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS Compliant
Frequently Asked Questions
Why does a carriage bolt have a square neck?
The square neck beneath the round head wedges into the wood as the nut is tightened, preventing the bolt from rotating. This allows tightening from one side only — perfect for deck and fence construction where you can not access the back side of the bolt.
.00 x 16 MM Carriage Bolt, Full Thread / Class 4.6 Steel / Zinc
Family: 622
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M10-1.50
Material
Steel
Grade
Class 4.6
Head Style
Carriage (Round)
Thread Pitch
1.5mm
Tensile Strength
58000
Hardness
B67 - B95
SKU
622127-300
