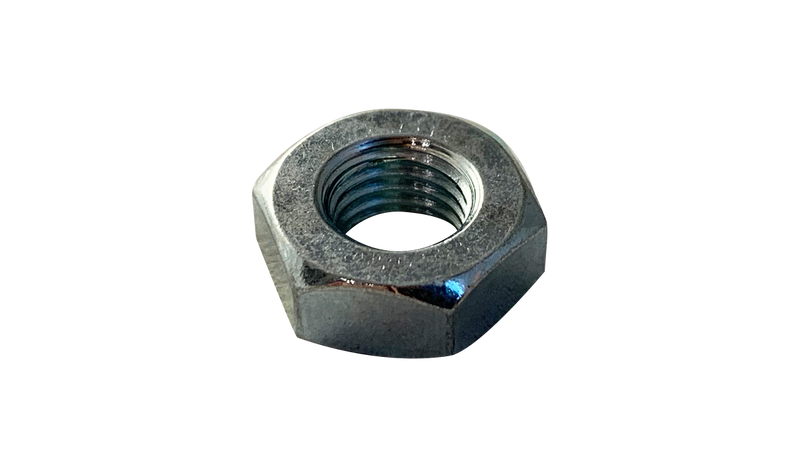

M10-1.00 Hex Nut (DIN 934) / Class 10 Steel / Plain / ISO 898-1 Class 10.9; ASME B18.2.2
$184.08
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M10-1.00 Hex Nut (DIN 934) / Class 10 Steel / Plain / ISO 898-1 Class 10.9; ASME B18.2.2
Specifications
| Material | Steel |
|---|---|
| Finish | Plain |
| Grade | Class 10.9 |
| Size | M10-1.00 |
| Thread Pitch | 1.00mm |
| Thread Class | Fine |
| Hardness | C32 - C39 |
| Tensile Strength | 145000 |
| Standard | ASME B18.2.2 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
| Width Across Flats | 17 mm |
| Nut Height | 8 mm |
RoHS Compliant
Frequently Asked Questions
What does the metric class number mean?
The first number indicates tensile strength (e.g., 12 = 1,200 MPa). The second number is the yield-to-tensile ratio. So Class 12.9 has 1,220 MPa tensile strength and yield at 90% of tensile. Class 12.9 is equivalent to inch Grade 8.
.00 Hex Nut / Class 10 Steel / Plain
Family: 300
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M10-1.00
Thread Type
Metric Coarse
Material
Steel
Grade
Class 10.9
Country of Origin
Import
Thread Pitch
1.00mm
Tensile Strength
145000
Hardness
C32 - C39
SKU
300105-1500
