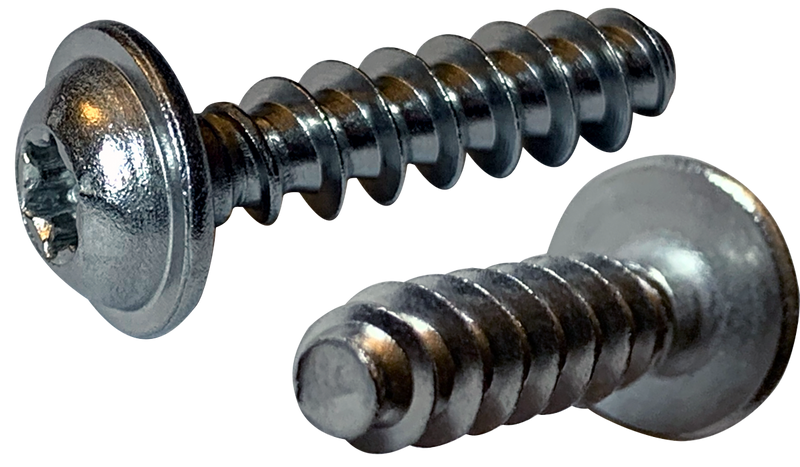

M1.6-0.67 x 8 mm Type PT Style Thread Forming Screws / Torx/Six-Lobe / Round Washer Head / A2 Stainless Steel
$207.90
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
M1.6-0.67 x 8 mm Type PT Style Thread Forming Screws / Torx/Six-Lobe / Round Washer Head / A2 Stainless Steel
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 18-8 |
| Size | M1.6-0.67 |
| Length | 8mm |
| Head Style | Round Washer Head |
| Drive | 6-Lobe |
| Thread Pitch | 0.67mm |
| Thread Class | Coarse |
| Head Diameter | 3.12mm - 3.6mm |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Metric |
RoHS CompliantStainless
Frequently Asked Questions
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
-0.67 x 5 mm Type PT Style Thread Forming Screws / Six-Lobe (Torx®) / Round Washer Head
Family: M-PTTRWA2
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
M1.6-0.67
Thread Type
Metric Coarse
Material
Stainless Steel
Grade
18-8
Head Style
Round Washer Head
Thread Pitch
0.67mm
Head Diameter
3.12mm - 3.6mm
SKU
M1.68PTTRWA2-3000
