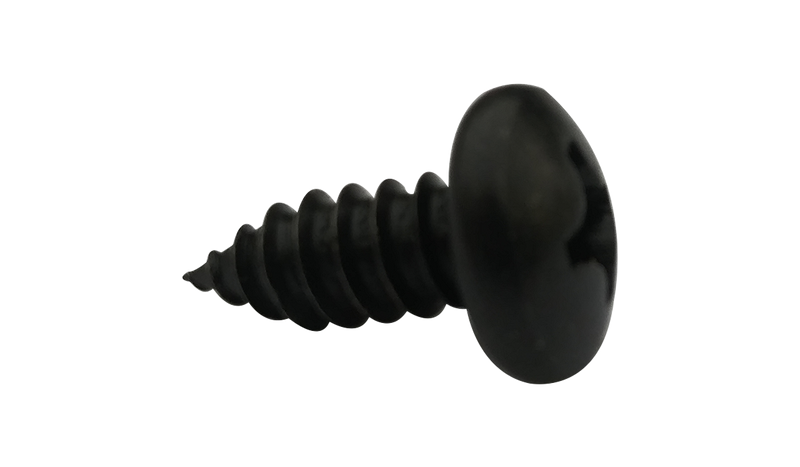

#8 x 7/8" Type AB Phillips Pan Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Black Oxide
$267.54
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#8 x 7/8" Type AB Phillips Pan Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Black Oxide
Specifications
| Material | Steel |
|---|---|
| Finish | Black Oxide |
| Size | #8 |
| Length | 7/8" |
| Head Style | Pan Head |
| Drive | Phillips |
| Thread Pitch | 8-18 |
| Point Type | Type AB |
| Head Diameter | 0.306 - .322 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
Type AB Self-Tapping Screws / Phillips / Pan Head
Family: ABPPB
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#8
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Pan Head
Thread Pitch
8-18
Head Diameter
0.306 - .322
SKU
0814ABPPB-6000
