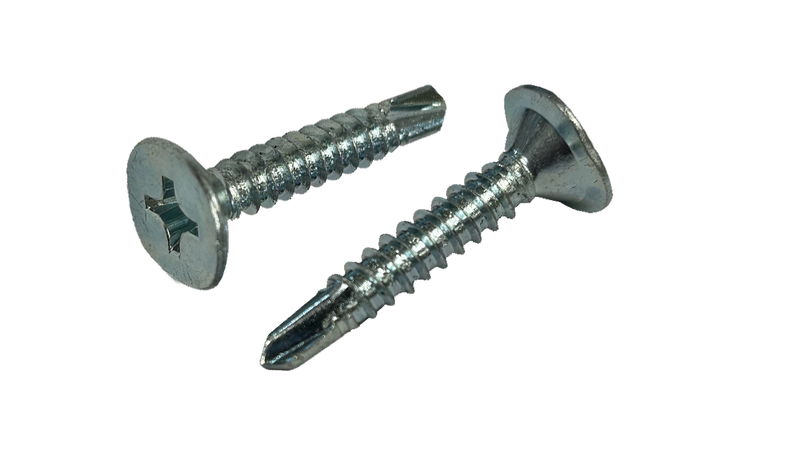

#8 x 7/8" Drill Point #2 Phillips Wafer Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Zinc
$205.00
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#8 x 7/8" Drill Point #2 Phillips Wafer Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Size | #8 |
| Length | 7/8" |
| Head Style | Wafer Head |
| Drive | Phillips |
| Thread Pitch | 8-18 |
| Point Type | Drill Point #2 |
| Head Diameter | 0.359 - 0.380 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
How thick of metal can this self-drilling screw drill through?
Self-drilling screws are rated by drill point number: #2 point drills 0.018"–0.140" (24–9 ga), #3 point drills 0.060"–0.210" (16–3 ga), #4 point drills 0.110"–0.500", #5 point drills 0.250"–0.625". Match the point to your material thickness for proper drilling performance.
Self-Drilling Screws / Phillips / Wafer Head
Family: KWAF
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#8
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Wafer Head
Thread Pitch
8-18
Head Diameter
0.359 - 0.380
SKU
0814KWAF-5000
