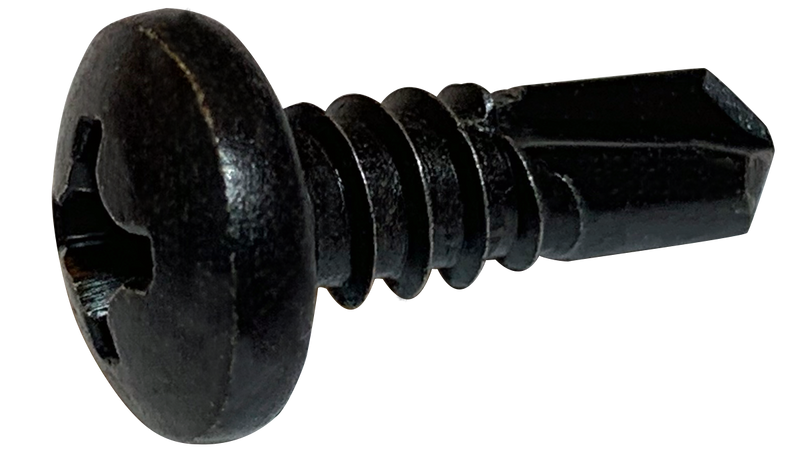

#8 x 1/2" Drill Point #2 Phillips Pan Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Black Oxide
$384.60
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#8 x 1/2" Drill Point #2 Phillips Pan Head Self-Drilling Screws, Full Thread / Low Carbon Steel / Black Oxide
Specifications
| Material | Steel |
|---|---|
| Finish | Black Oxide |
| Size | #8 |
| Length | 1/2" |
| Head Style | Pan Head |
| Drive | Phillips |
| Thread Pitch | 8-18 |
| Point Type | Drill Point #2 |
| Head Diameter | 0.306 - 0.322 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
How thick of metal can this self-drilling screw drill through?
Self-drilling screws are rated by drill point number: #2 point drills 0.018"–0.140" (24–9 ga), #3 point drills 0.060"–0.210" (16–3 ga), #4 point drills 0.110"–0.500", #5 point drills 0.250"–0.625". Match the point to your material thickness for proper drilling performance.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
Self-Drilling Screws / Phillips / Pan Head
Family: KPPB
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#8
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Pan Head
Thread Pitch
8-18
Head Diameter
0.306 - 0.322
SKU
0808KPPB-10000
