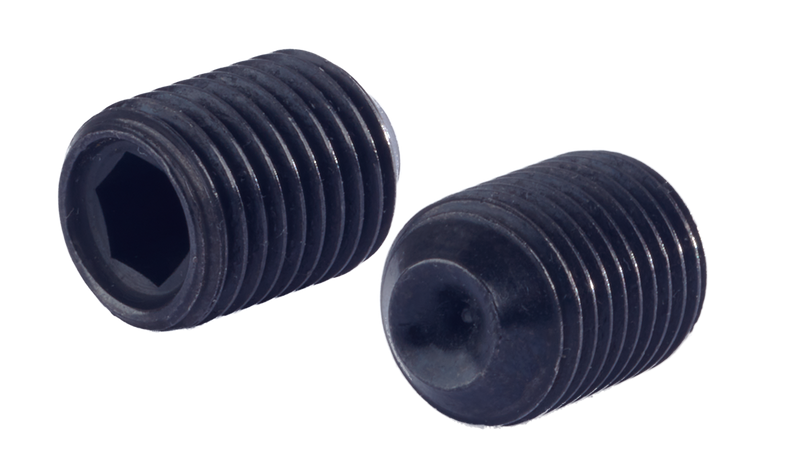

#8-36 x 3/16" Cup Point Socket Set Screws / Alloy Steel / Black Oxide / Made in USA
- Steel
- Black Oxide
- 36 TPI · Fine
- ASME B18.3
$15.39
$1.54 / pc
Package of 10
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#8-36 x 3/16" Cup Point Socket Set Screws / Alloy Steel / Black Oxide / Made in USA
RoHS Compliant🇺🇸 Made in USA
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$15.39
$1.54/pc
Cup Point Socket Set Screws / Alloy Steel / Black Oxide
Family: SSCF
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#8-36
Length
3/16"
Thread Type
Fine
Material
Steel
Finish
Black Oxide
Drive
Hex Socket (Allen)
Head Style
Headless (Set Screw)
Standard
ASME B18.3
Country of Origin
USA
Thread Pitch
36 TPI
Thread Class
Fine
Point Type
Cup
RoHS Compliance
RoHS Compliant
Measurement System
Inch
SKU
08F03SSC-10
