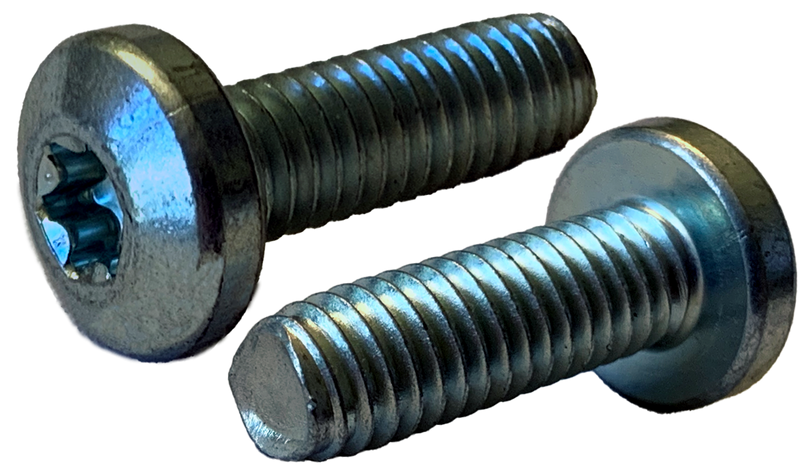

#8-32 x 1/2" Trilobe Thread Forming Screws for Metal / Torx/Six-Lobe / Pan Head / Steel / Zinc
$325.70
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#8-32 x 1/2" Trilobe Thread Forming Screws for Metal / Torx/Six-Lobe / Pan Head / Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Size | #8-32 |
| Length | 1/2" |
| Head Style | Pan Head |
| Drive | 6-Lobe |
| Thread Pitch | 32 TPI |
| Thread Class | Coarse |
| Head Diameter | 0.306 - 0.322 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
RoHS Compliant
Trilobe Thread Forming Screws for Metal / Six-Lobe (Torx®) / Pan Head
Family: RTP
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#8-32
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Pan Head
Thread Pitch
32 TPI
Head Diameter
0.306 - 0.322
SKU
0808RTP-10000
