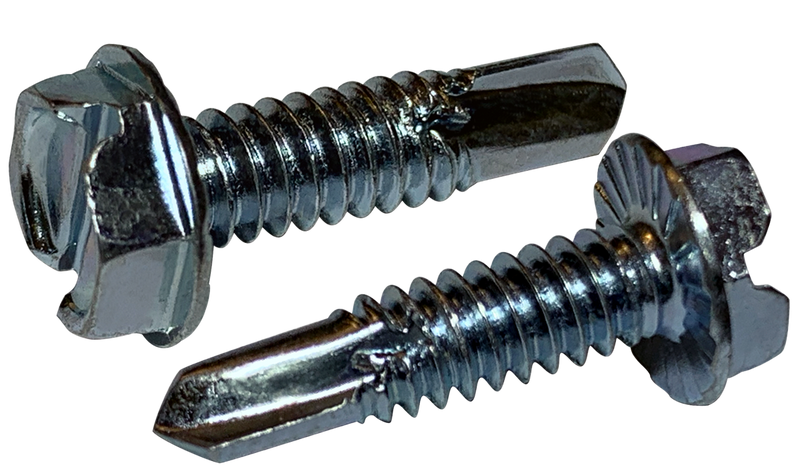

#8-32 x 1/2" Drill Point #2 Slotted Hex Washer Serrated Self-Drilling Screws / Low Carbon Steel / Zinc
$495.90
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#8-32 x 1/2" Drill Point #2 Slotted Hex Washer Serrated Self-Drilling Screws / Low Carbon Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Size | #8-32 |
| Length | 1/2" |
| Head Style | Hex Washer Serrated |
| Drive | Slotted |
| Thread Pitch | 32 TPI |
| Thread Class | Coarse |
| Point Type | Drill Point #2 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
How thick of metal can this self-drilling screw drill through?
Self-drilling screws are rated by drill point number: #2 point drills 0.018"–0.140" (24–9 ga), #3 point drills 0.060"–0.210" (16–3 ga), #4 point drills 0.110"–0.500", #5 point drills 0.250"–0.625". Match the point to your material thickness for proper drilling performance.
Self-Drilling Screws / Slotted / Hex Washer Head
Family: KSWSMS
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#8-32
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Hex Washer Serrated
Thread Pitch
32 TPI
SKU
0808KSWSMS-10000
