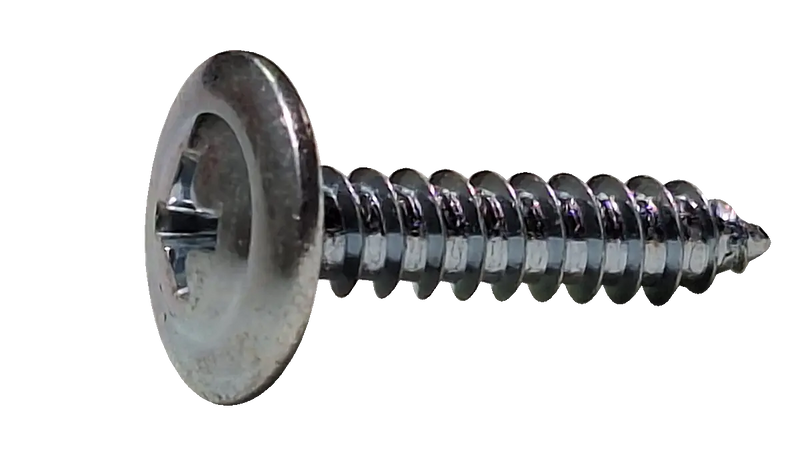

#6 x 7/16" Type AB Phillips Modified Truss Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Zinc
$352.70
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#6 x 7/16" Type AB Phillips Modified Truss Head Self-Tapping Screws, Full Thread / Low Carbon Steel / Zinc
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Size | #6 |
| Length | 7/16" |
| Head Style | Modified Truss Head |
| Drive | Phillips |
| Thread Pitch | 6-20 |
| Point Type | Type AB |
| Head Diameter | 0.385 - 0.401 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
Type AB Self-Tapping Screws / Phillips / Modified Truss Head
Family: ABPM
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#6
Thread Type
Coarse (UNC)
Material
Steel
Head Style
Modified Truss Head
Thread Pitch
6-20
Head Diameter
0.385 - 0.401
SKU
0607ABPM-10000
