#6-32 x 3/16
SKU: 0603RTT-10000 In Stock

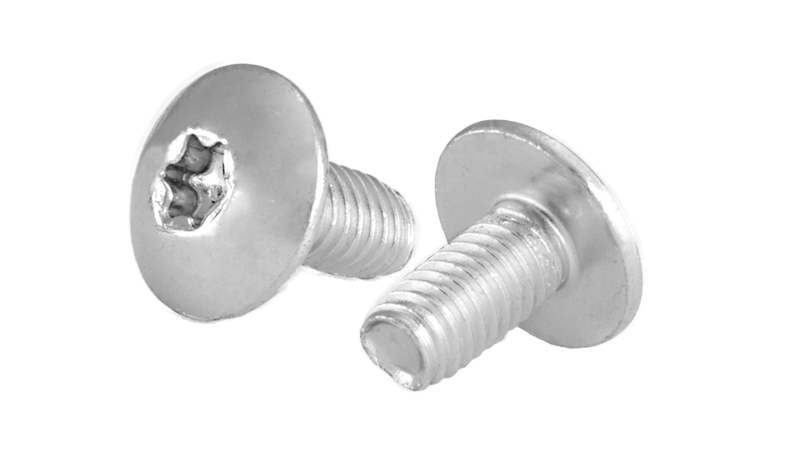

#6-32 x 3/16" Trilobe Thread Forming Screws for Metal / Six-Lobe (Torx®) / Truss Head / Steel / Zinc

$362.50
Same-Day Shipping
Certified Specs
Volume Pricing

Product Description

6-32X3/16 6 Lobe Full Truss Taptite Alternative Thread Roll Screw Full Thrd Zinc Bake Wax

Specifications

Material Steel
Finish Zinc
Size 6-32
Length 3/16"
Head Style Truss Head
Drive Torx/Six-Lobe
Thread Pitch 32 TPI
Head Diameter 0.303 - 0.321
Head Height 0.074 - 0.086
Measurement System Inch

Download Spec Sheet (PDF)

Trilobe Thread Forming Screws for Metal / Six-Lobe (Torx®) / Truss Head

Family: RTT

Select size and quantity, then add to cart

Loading filters...
0 items selected

Technical Specifications

Thread Size
#6-32
Thread Type
Coarse (UNC)
Material
Steel
Grade
Low Carbon
Head Style
Truss Head
Thread Pitch
32 TPI
Head Diameter
0.303 - 0.321
SKU
0603RTT-10000
