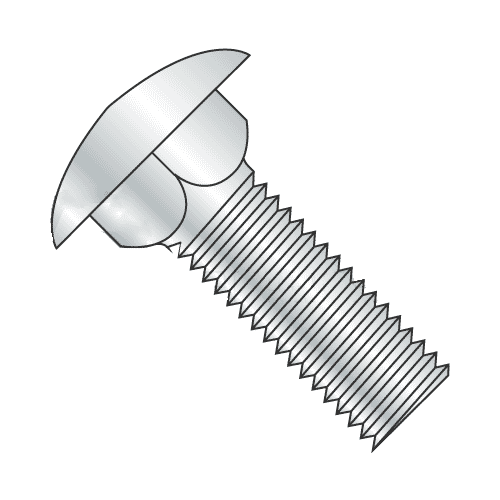

3/8"-16 x 2 1/2" Carriage Bolt, Full Thread / Grade A Steel / Zinc / ASTM A307 Grade A; ASME B18.5
$109.94
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
3/8"-16 x 2 1/2" Carriage Bolt, Full Thread / Grade A Steel / Zinc / ASTM A307 Grade A; ASME B18.5
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Grade | A307 Grade A |
| Size | 3/8"-16 |
| Length | 2 1/2" |
| Head Style | Carriage (Round) |
| Drive | No Drive (Square Neck) |
| Thread Pitch | 16 TPI |
| Thread Class | Coarse |
| Hardness | B69 - B100 |
| Tensile Strength | 60000 |
| Standard | ASME B18.5 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
Why does a carriage bolt have a square neck?
The square neck beneath the round head wedges into the wood as the nut is tightened, preventing the bolt from rotating. This allows tightening from one side only — perfect for deck and fence construction where you can not access the back side of the bolt.
Carriage Bolt, Full Thread / Grade A Steel / Zinc
Family: 489
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/8"-16
Thread Type
Coarse (UNC)
Material
Steel
Grade
A307 Grade A
Head Style
Carriage (Round)
Thread Pitch
16 TPI
Tensile Strength
60000
Hardness
B69 - B100
SKU
489076-450
