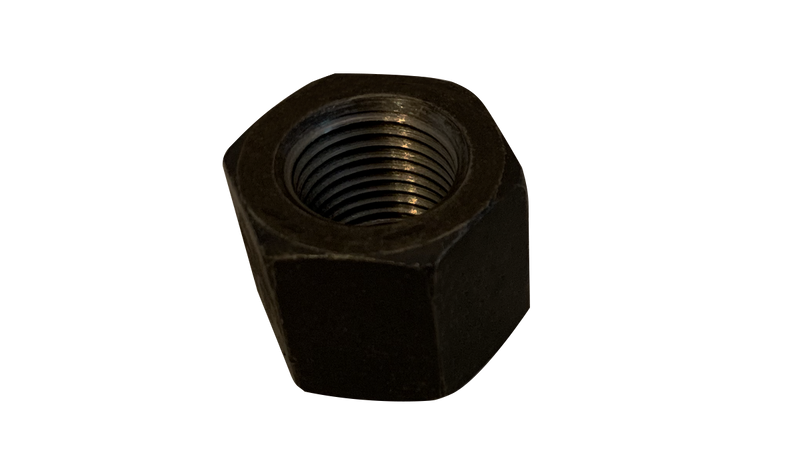

3/4"-16 High Hex Nuts / 1 1/8" Thk / Grade 8 / Plain
$498.63
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
3/4"-16 High Hex Nuts / 1 1/8" Thk / Grade 8 / Plain
Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Plain |
| Grade | Grade 8 |
| Size | 3/4"-16 |
| Length | 1 1/8" |
| Thread Pitch | 16 TPI |
| Thread Class | Fine |
| Thickness | 0.641 |
| Hardness | C33-C39 |
| Tensile Strength | 150 ksi (1034 MPa) |
| Standard | ASME B18.2.2 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
| Width Across Flats | 1 1/8" |
| Nut Height | 41/64" |
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
High Hex Nuts / 21/32" Thk / Grade 8
Family: NHI8PF
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
3/4"-16
Thread Type
Fine (UNF)
Material
Alloy Steel
Grade
Grade 8
Thread Pitch
16 TPI
Thickness
0.641
Tensile Strength
150 ksi (1034 MPa)
Hardness
C33-C39
SKU
7618NHI8P-200
