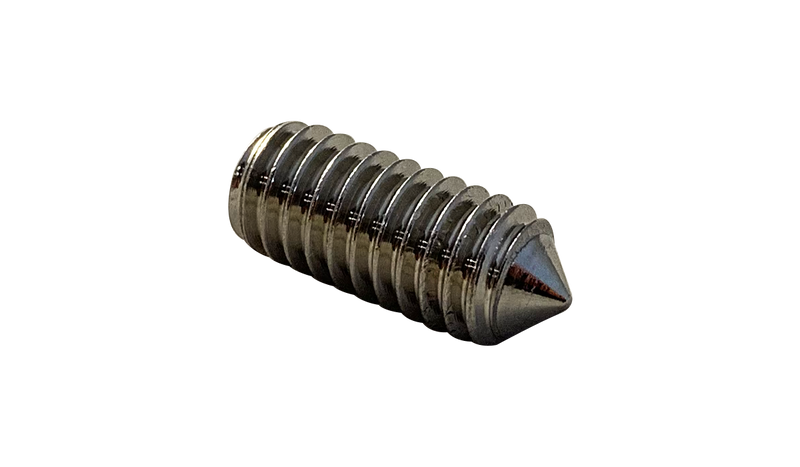

#2-56 x 1/8" Socket Set Screws / 18-8 Stainless Steel / Passivated
- Stainless Steel
- 18-8
- Passivated
- 56 TPI · Coarse
- ASME B18.3
$210.05
$0.840 / pc
Package of 250
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
#2-56 x 1/8" Socket Set Screws / 18-8 Stainless Steel / Passivated
RoHS CompliantStainless
Frequently Asked Questions
Which set screw point type should I use?
Cup point (most common) provides maximum holding power on hard shafts. Cone point requires a matching dimple for permanent positioning. Flat point is for soft surfaces or applications requiring frequent adjustment. Half-Dog point locks into a groove for axial retention. Oval point is gentler on the shaft surface.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
$210.05
$0.840/pc
Cone Point Socket Set Screws
Family: SSNCI188
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#2-56
Length
1/8"
Thread Type
Coarse
Material
Stainless Steel
Grade
18-8
Finish
Passivated
Drive
Hex Socket (Allen)
Head Style
Headless (Set Screw)
Standard
ASME B18.3
Country of Origin
Import
Thread Pitch
56 TPI
Thread Class
Coarse
Point Type
Cone
RoHS Compliance
RoHS Compliant
Measurement System
Inch
SKU
0202SSNI188-250
