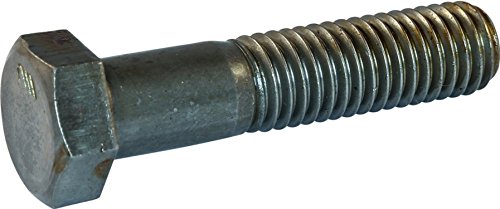

2"-4 1/2 x 7" Hex Bolt, Partial Thread / Grade A Low Carbon Steel / Plain / ASTM A307 Grade A; ASME B18.2.1
- Steel
- A307 Grade A
- Plain
- 4 1/2 TPI · Coarse
- ASME B18.2.1
$150.71
$37.68 / pc
Bulk Box of 4
Volume pricing: Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
2"-4 1/2 x 7" Hex Bolt, Partial Thread / Grade A Low Carbon Steel / Plain / ASTM A307 Grade A; ASME B18.2.1
RoHS Compliant
Frequently Asked Questions
What is the difference between partial thread and full thread?
Partial thread (also called shoulder bolt or tap bolt) has an unthreaded shank for shear strength. Full thread (fully threaded cap screw) provides more clamping engagement. Standard cap screws above 6 inches long are typically partial thread.
$150.71
$37.68/pc
Hex Bolt, Full Thread / Grade A Low Carbon Steel / Plain
Family: 493
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
2"-4.5
Length
7"
Thread Type
Coarse
Material
Steel
Grade
A307 Grade A
Finish
Plain
Drive
External Hex
Head Style
Hex Head
Standard
ASME B18.2.1
Thread Pitch
4 1/2 TPI
Thread Class
Coarse
Tensile Strength
60000
RoHS Compliance
RoHS Compliant
Measurement System
Inch
Head Height
1 11/32"
Width Across Flats
3"
SKU
493858-4
