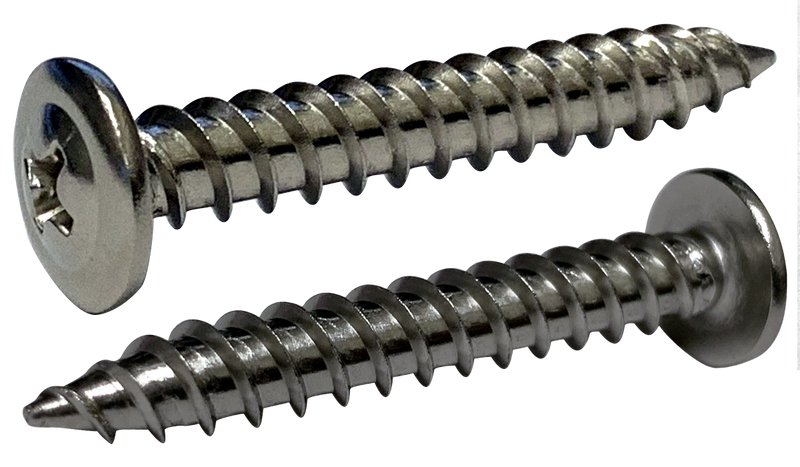

#2-32 x 1/4" Type A Self-Tapping Screws / Phillips / Pan Head / 18-8 Stainless Steel / Passivated / ASTM F593 Alloy Group 2 (18-8); ASME B18.6.4
$73.44
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#2-32 x 1/4" Type A Self-Tapping Screws / Phillips / Pan Head / 18-8 Stainless Steel / Passivated / ASTM F593 Alloy Group 2 (18-8); ASME B18.6.4
Specifications
| Material | Stainless Steel |
|---|---|
| Finish | Passivated |
| Grade | 18-8 |
| Size | #2-32 |
| Length | 1/4" |
| Head Style | Pan Head |
| Drive | Phillips |
| Thread Pitch | 32 TPI |
| Point Type | Type A |
| Hardness | B70 - C32 |
| Tensile Strength | 70000 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS CompliantStainless
Frequently Asked Questions
What pilot hole size do I need for this self-tapping screw?
The pilot hole should be approximately 70-80% of the screw outside diameter. For #6 screws use .128" drill (#30). For #8 use .157" (#21). For #10 use .180" (#15). For 1/4" use .228" (#1). Always test in scrap material first to verify proper engagement.
How corrosion-resistant is this stainless steel fastener?
Stainless steel fasteners resist rust and corrosion in most environments. For specific corrosion requirements, consult our engineering team or the appropriate ASTM specification.
,(FT) x 3/8" Pan Head Self-Tapping Screw, Type A, Full Thread (Phillips) / A2 Stainless Steel / Passivated
Family: 792
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#2-32
Thread Type
Coarse
Material
Stainless Steel
Grade
18-8
Head Style
Pan Head
Thread Pitch
32 TPI
Tensile Strength
70000
Hardness
B70 - C32
SKU
792000-5000
