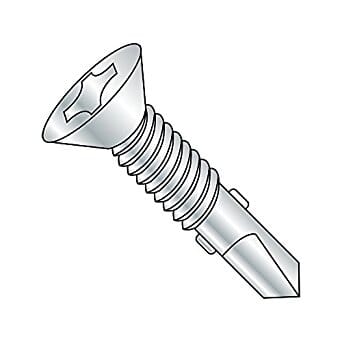

#12-24 x 2" Drill Point #4 Phillips Flat Head Self-Drilling Screws / Low Carbon Steel / Zinc / ASME B18.6.4
$143.99
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#12-24 x 2" Drill Point #4 Phillips Flat Head Self-Drilling Screws / Low Carbon Steel / Zinc / ASME B18.6.4
Specifications
| Material | Steel |
|---|---|
| Finish | Zinc |
| Size | #12-24 |
| Length | 2" |
| Head Style | Flat Head |
| Drive | Phillips |
| Thread Pitch | 24 TPI |
| Thread Class | Coarse |
| Point Type | Drill Point #4 |
| Standard | ASME B18.6.4 |
| RoHS Compliance | RoHS Compliant |
| Measurement System | Inch |
RoHS Compliant
Frequently Asked Questions
How thick of metal can this self-drilling screw drill through?
Self-drilling screws are rated by drill point number: #2 point drills 0.018"–0.140" (24–9 ga), #3 point drills 0.060"–0.210" (16–3 ga), #4 point drills 0.110"–0.500", #5 point drills 0.250"–0.625". Match the point to your material thickness for proper drilling performance.
Phillips/Hex Washer Self-Drilling Screw, Full Thread / Steel / Zinc
Family: 693
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#12-24
Thread Type
Coarse (Standard)
Material
Steel
Head Style
Flat Head
Thread Pitch
24 TPI
SKU
693832-1000
