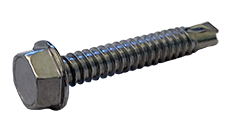

#12-14 x 1 1/2" Phillips/Hex Washer Self-Drilling Screw, Full Thread / 410 Stainless Steel / Passivated / ASTM F593 Alloy Group 3 (410); ASME B18.6.4
$286.98
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
#12-14 x 1 1/2" Phillips/Hex Washer Self-Drilling Screw, Full Thread / 410 Stainless Steel / Passivated / ASTM F593 Alloy Group 3 (410); ASME B18.6.4
Specifications
| Material | Stainless Steel |
| Finish | Passivated |
| Grade | 410 |
| Thread Size | #12-14 |
| Thread Pitch | 14 TPI |
| Thread Series | Coarse (Standard) |
| Length | 1 1/2" |
| Head Style | Hex Washer |
| Drive Style | Phillips/Hex Washer |
| Point Type | #3 Drill Point |
| Standard | ASTM F593 Alloy Group 3 (410) |
| Dimensional Standard | ASME B18.6.4 |
| Tensile Strength (PSI) | 100000 |
| Hardness | B80 - C32 |
| Measurement System | Imperial |
Phillips/Hex Washer Self-Drilling Screw, Full Thread / 410 Stainless Steel / Passivated
Family: 040
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
#12-14
Thread Type
Coarse (Standard)
Material
Stainless Steel
Grade
410
Head Style
Hex Washer Head
Thread Pitch
14 TPI
Tensile Strength
100000
Hardness
B80 - C32
SKU
040185-1500
