#10-24 x 5/8
SKU: 1010RTP410-4000 In Stock

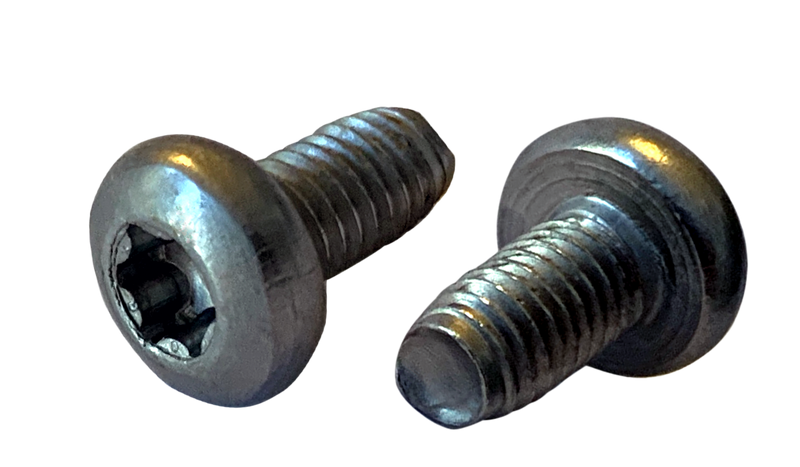

#10-24 x 5/8" Trilobe Thread Forming Screws for Metal / Six-Lobe (Torx®) / Pan Head / 410 Stainless Steel

$420.52
Same-Day Shipping
Certified Specs
Volume Pricing

Product Description

10-24X5/8 6 Lobe Pan Taptite Alternative Thread Rolling Full Thrd 410 Stainless Pass &Wax

Specifications

Material Stainless Steel
Finish Passivated
Grade 410
Size 10-24
Length 5/8"
Head Style Pan Head
Drive Torx/Six-Lobe
Thread Pitch 24 TPI
Head Diameter 0.357 - 0.373
Head Height 0.122 - 0.133
Measurement System Inch

Download Spec Sheet (PDF)

Trilobe Thread Forming Screws for Metal / Six-Lobe (Torx®) / Pan Head

Family: RTP410

Select size and quantity, then add to cart

Loading filters...
0 items selected

Technical Specifications

Thread Size
#10-24
Thread Type
Coarse (UNC)
Material
Stainless Steel
Grade
410
Head Style
Pan Head
Thread Pitch
24 TPI
Head Diameter
0.357 - 0.373
SKU
1010RTP410-4000
