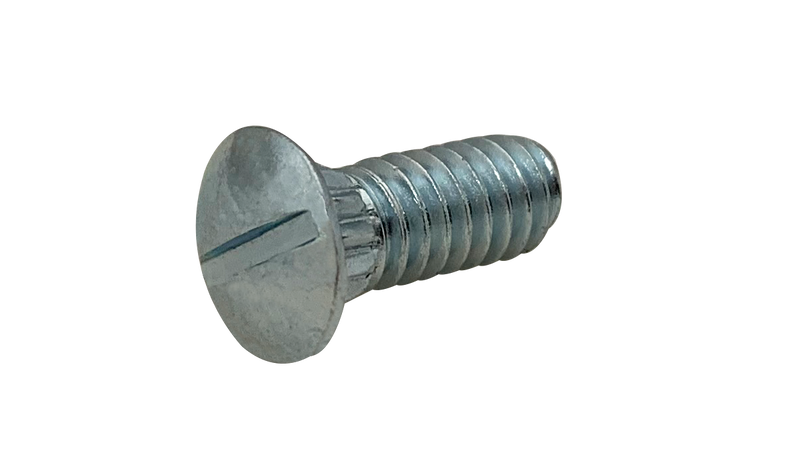

1/4"-20 x 5/8" Track Bolts / Ribbed Neck / Grade 5 / Zinc
- Steel
- Grade 5
- Zinc
- 20 TPI · Coarse
$639.60
$1.28 / pc
Package of 500
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
1/4"-20 x 5/8" Track Bolts / Ribbed Neck / Grade 5 / Zinc
RoHS Compliant
Frequently Asked Questions
What is the difference between Grade 5 and Grade 8?
Grade 5 (medium carbon steel, 120 ksi tensile strength) is suitable for most industrial applications. Grade 8 (alloy steel, 150 ksi tensile strength) is used for high-strength applications like automotive suspension and machinery. Grade 5 hex heads have 3 radial lines; Grade 8 has 6 radial lines.
$639.60
$1.28/pc
Track Bolts / Ribbed Neck / Grade 5
Family: TBSR5
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/4"-20
Length
5/8"
Thread Type
Coarse
Material
Steel
Grade
Grade 5
Finish
Zinc
Drive
Slotted
Head Style
Round Head
Country of Origin
Import
Thread Pitch
20 TPI
Thread Class
Coarse
Tensile Strength
120 ksi (827 MPa)
Hardness
C25-C34
RoHS Compliance
RoHS Compliant
Measurement System
Inch
SKU
1410TBSR5-500
