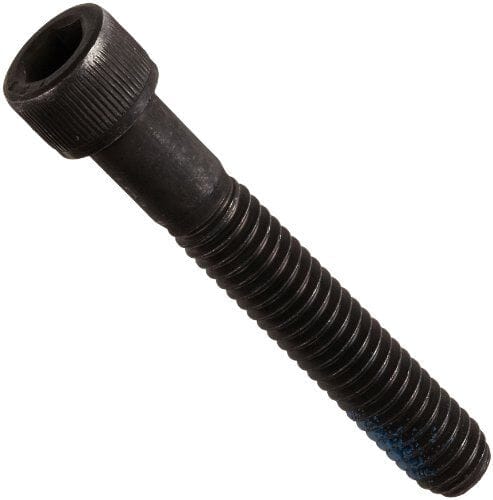

1/2"-12 x 4" Socket Head Cap Screws, Partial Thread / Alloy Steel / Thermal Black Oxide
- Steel
- Thermal Black Oxide
- 12 TPI
- ASME B18.3, ASTM F835
$314.00
$12.56 / pc
Package of 25
Volume pricing: the bulk box price per piece is shown above. Need more? Request a quote →
Net 30 terms for approved accounts. Apply for wholesale →
Product Description
1/2"-12 x 4" Socket Head Cap Screws, Partial Thread / Alloy Steel / Thermal Black Oxide
RoHS Compliant
Frequently Asked Questions
What hex key size do I need for this socket head cap screw?
Hex socket size depends on the screw thread size. Common sizes: #6 uses 7/64", #8 uses 9/64", #10 uses 5/32", 1/4" uses 3/16", 5/16" uses 1/4", 3/8" uses 5/16". For metric: M3 uses 2.5mm, M5 uses 4mm, M6 uses 5mm, M8 uses 6mm, M10 uses 8mm.
Does Black Oxide finish provide corrosion protection?
Black Oxide provides mild corrosion resistance through a controlled oxidation process. It is dimensionally stable (no plating buildup), will not chip or flake, and is suitable for indoor use. For outdoor or wet environments, additional oil coating or a different finish (zinc, stainless) is recommended.
$314.00
$12.56/pc
Socket Head Cap Screw, Full Thread / Alloy Steel / Black Oxide
Family: 813
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1/2"-12
Length
4"
Material
Steel
Finish
Thermal Black Oxide
Drive
Hex Socket (Allen)
Head Style
Socket Head
Standard
ASME B18.3, ASTM F835
Thread Pitch
12 TPI
Tensile Strength
180000
Hardness
C37 - C45
RoHS Compliance
RoHS Compliant
Measurement System
Inch
SKU
813377-25
