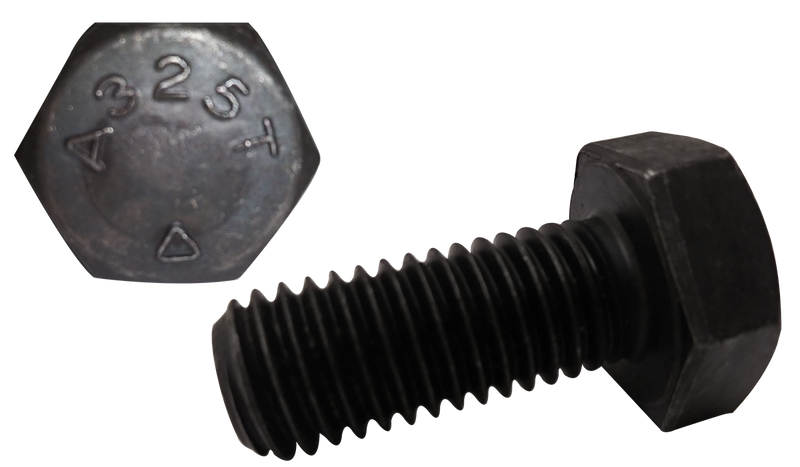

1 1/8"-7 x 4" Structural Bolts / A325 / Plain
$210.56
Same-Day Shipping
Certified Specs
Volume Pricing
Product Description
1 1/8"-7 x 4" Structural Bolts / A325 / Plain
Specifications
| Material | Steel |
|---|---|
| Finish | Plain |
| Grade | A325 |
| Size | 1 1/8"-7 |
| Length | 4" |
| Head Style | Hex Head |
| Drive | External Hex |
| Thread Pitch | 7 TPI |
| Thread Class | Coarse |
| Hardness | C24-C35 |
| Tensile Strength | 120 ksi (827 MPa) |
| Standard | ASME B18.2.1 |
| RoHS Compliance | On Request |
| Measurement System | Inch |
| Head Height | 3/4" |
| Width Across Flats | 1 11/16" |
RoHS Compliant🇺🇸 Made in USA
Structural Bolts / A325 / Plain
Family: A325
Select size and quantity, then add to cart
Loading filters...
|
Loading family products...
|
Technical Specifications
Thread Size
1 1/8"-7
Thread Type
Coarse (UNC)
Material
Steel
Grade
A325
Head Style
Hex Head
Thread Pitch
7 TPI
Tensile Strength
120 ksi (827 MPa)
Hardness
C24-C35
SKU
11264A325-1-15
