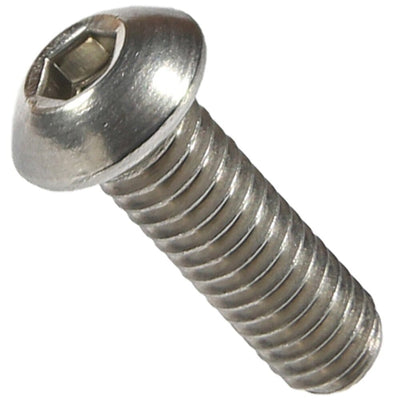

#10-24 Button Head Cap Screws

#10-24 Button Head Socket Cap Screws in all available lengths, grades, materials, and finishes. This collection covers every #10-24 option in stock — use the filters to narrow by length, grade, material, and finish.

#10-24 Thread Specifications

• Nominal diameter: 0.19"
• Threads per inch: 24
• Tap drill (75% thread): #25 (0.149")
• Clearance hole (close fit): #9 (0.196")
• Clearance hole (free fit): #7 (0.201")

To thread a #10-24 hole, drill with a #25 (0.149") tap drill for a standard 75% thread. For a clearance hole that the #10-24 screw passes through, use #9 (0.196") for a close fit or #7 (0.201") for a free fit. Pair with a matching #10-24 nut or tapped hole.
