#2 x 1/4
SKU: 0204LTFB-10000 In Stock

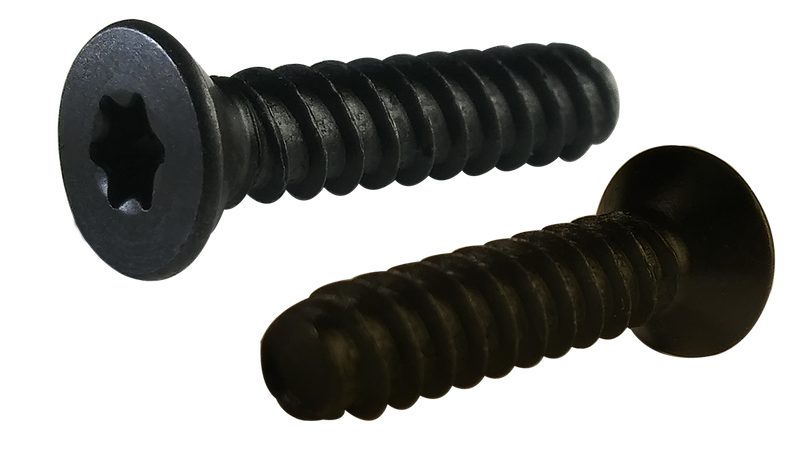

#2 x 1/4" Thread Forming Screws for Plastics (48-2) / Six-Lobe (Torx®) / Flat Head / Steel / Black Oxide

$746.80
Same-Day Shipping
Certified Specs
Volume Pricing

Product Description

2-28X1/4 6 Lobe Flat Plastite Alternative 48-2 Fully Threaded Black Oxide and Wax

Specifications

Material Steel
Finish Black Oxide
Size #2
Length 1/4"
Head Style Flat Head
Drive Torx/Six-Lobe
Thread Pitch 2-28
Head Diameter 0.144 - 0.162
Head Height 0.051
Measurement System Inch

Download Spec Sheet (PDF)

Thread Forming Screws for Plastics (48-2) / Six-Lobe (Torx®) / Flat Head

Family: LTFB

Select size and quantity, then add to cart

Loading filters...
0 items selected

Technical Specifications

Thread Size
#2
Thread Type
Coarse (UNC)
Material
Steel
Grade
Low Carbon
Head Style
Flat Head
Thread Pitch
2-28
Head Diameter
0.144 - 0.162
SKU
0204LTFB-10000
